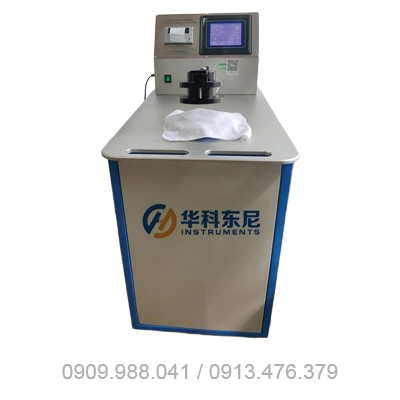

Air Permeability Tester HTF-020 TONY

Model

HTF-020

Measuring Unit

mm/s, L/m2/s, cm3/cm2/s, dm/min, L/dm2/min, m/min, m/h, cfm

Test Accuracy

 ±2％

Test Pressure

0-1000Pa for sample, 0-4000Pa for Nozzle

Air Permeability

0.2～13000mm/s

Measuring Error

±2％

Fabric Thickness

 ≤12mm

Air Regulation

data feedback dynamic regulation

Test Area &Test Fixture

20cm² and 38cm²(Ø70mm);5cm²,25cm,50cm²and 100cm²(optional)

Out Put

inside stylus printer

Power Source

220V±10% , 50Hz, 800W

External Dimension

520×850×1050mm

Pore Plate(nozzle)

8 pcs, automatically changeable by machine, no need to change it by hand

Net Weight

95Kg
