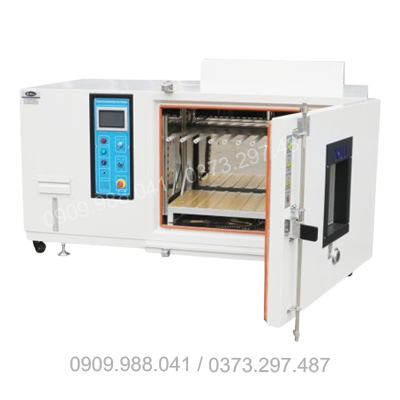

Buồng thử nghiệm độ ẩm và nhiệt độ môi trường khí hậu ASLI

Model

F-TH-150(A~F)

F-TH-225(A~F)

F-TH-408(A~F)

F-TH-800(A~F)

Internal Dimension
W*H*D( mm)

500*600*500

600*750*500

600*850*800

1000*1000*800

Internal Dimension
W*H*D (mm)

1100*1750*1600

1200*1800*1700

1250*1900*1900

1600*2050*2150

Range of Fast
Temperature Change

Temperature Range: -70~+150 degree C;
Range of Fast Temperature Change: -45~+85degree C;
Max. temperature rising/falling speed is 20 degree C/min when the whole process with linear control .

Humidity Range(Optional)

20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional ,need Dehumidifier)

Indication resolution/
Distribution Uniformity
of Temperature and Humidity

0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H.

Control Accuracy of
Temperature and Humidity

±0.5degree C; ±2.5% R.H.

Temperature Rising/
Falling Velocity

Rising/Falling Speed Rate with linear control : 3~20degree C/min, adjustable
Rising/Falling Speed Rate non-linear control : 3~30degree C/min, adjustable

Material

Interior material is SUS 304# stainless steel,

exterior is stainless steel or SEE cold-rolled steel with paint coated.

Insulation Material

Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials

Cooling System

Water cooled/single segment compressor

Protection Devices

Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection

Optional Accessories

Inner door with operation hole(Optional), Water Purifier, Dehumidifier

Compressor

French Tecumseh Brand, Germany Bizer Brand

Power

AC380V 3Ph 5 lines, 50/60HZ

Approx. Weight(Kg)

250

350

450

600
