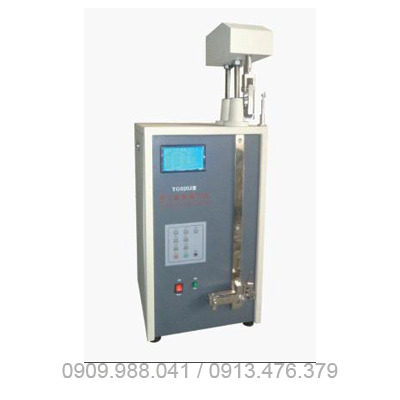

Máy kiểm tra độ bền sợi đơn HTY-009 TONY

Model

HTY-009-1

HTY-009-2

HTY-009-3

HTY-009-4

Load Range

0-3000cN

0-5000cN

0-100N

0-300N

Working Pattern

Large LCD display, Chinese menu operation. At the same time, the test report can be printed out and the next set of samples can be tested.

Testing Range

1%-100% of the full range

Testing Accuracy

≤±1%F·S

Stretching Velocity

50～1000mm/min  (can be set)

Sampling Length

100mm, 250mm, 500mm  (three speed options)

Pr-tension

0-150cN (can be set)

Power Supply

AC 220V±10% 50Hz

Overall Dimensions

370×450×970mm（L×W×H）

Net Weight

60 kg
