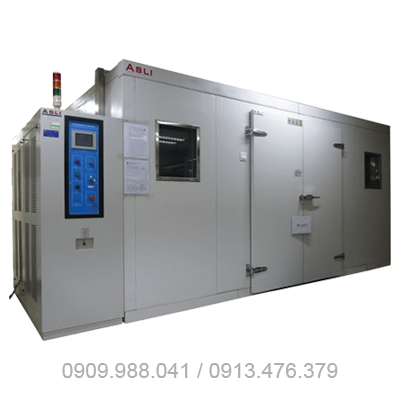

Phòng thử nghiệm độ ẩm và nhiệt độ hiệu suất cao ASLI

 Model

 THR-volume (low-temperature options : A ~ F)

 Inner Dimensions(cm)

 Customers designated space size and design

 Temperature Range

 Low Temperature(A:25°C  B:0°C  C:-20°C D:-40°C  E:-60°C  F:-70°C) High Temperature 80°C (80°C ~150°C is optional)

 Humidity Range

 20%~98%R.H.

(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)

Indication Resolution / Distribution Uniformity of Temperature & Humidity

 0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H.

 Control Accuracy of

Temperature and Humidity

 ±0.5°C; ±2.5% R.H.

 Temperature Rising/Falling

Velocity

 Temperature rising approx.  0.1~3.0°C/min;

temperature falling approx.  0.1~1.0°C/min;

( The Falling Velocity Min.1.0°C /min is a optional)

 Cooling System

 Water cooled

 Protection Devices

 Fuse-free switch, overloading protection switch  for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses,  fault warning system, water short storage warning protection

 Optional Accessories

 Slope for cart , Recorder, Water Purifier, Dehumidifier

 Compressor

 French Tecumseh Brand, Germany Bizer Brand

 Power

 AC 380 V(±10%),50/60HZ ,3 phase 5 Lines
